ELECTRONIC BACKPACK

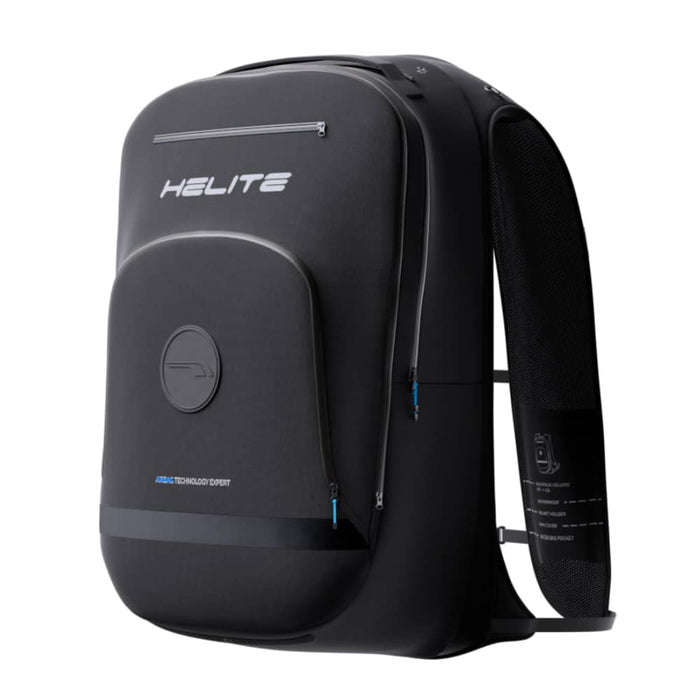

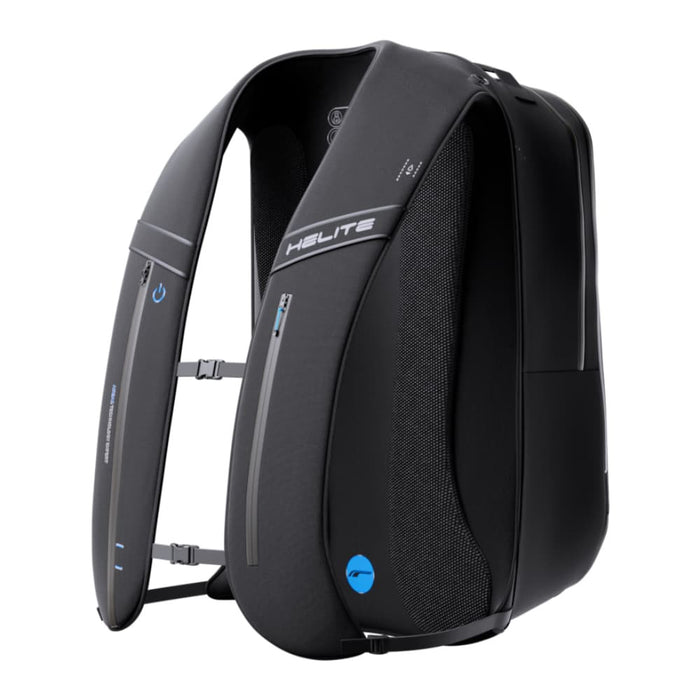

Backpack
It is made up of many pockets and compartments, a rain cover, and a helmet holder. It is removable and can be separated from the airbag via a zipper. Its volume is expandable from 18 L to 23 L. Caution: the maximum load weight is 8 kg.

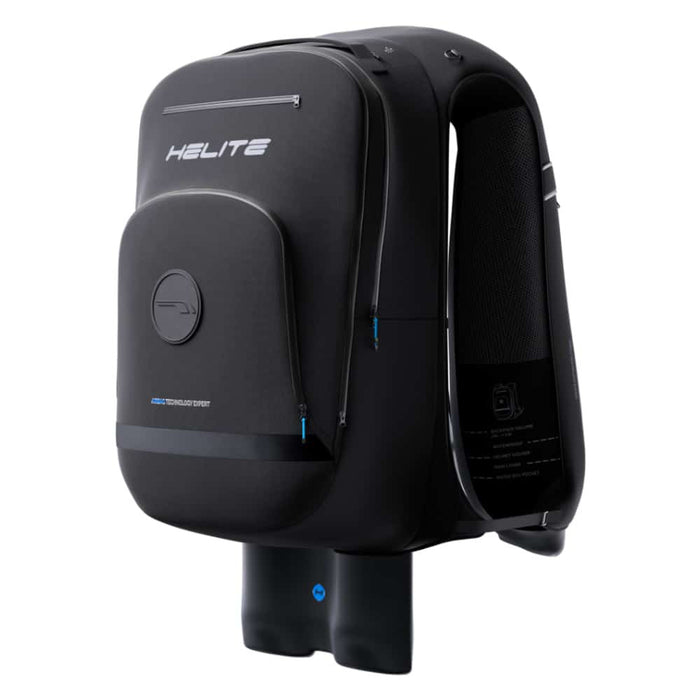

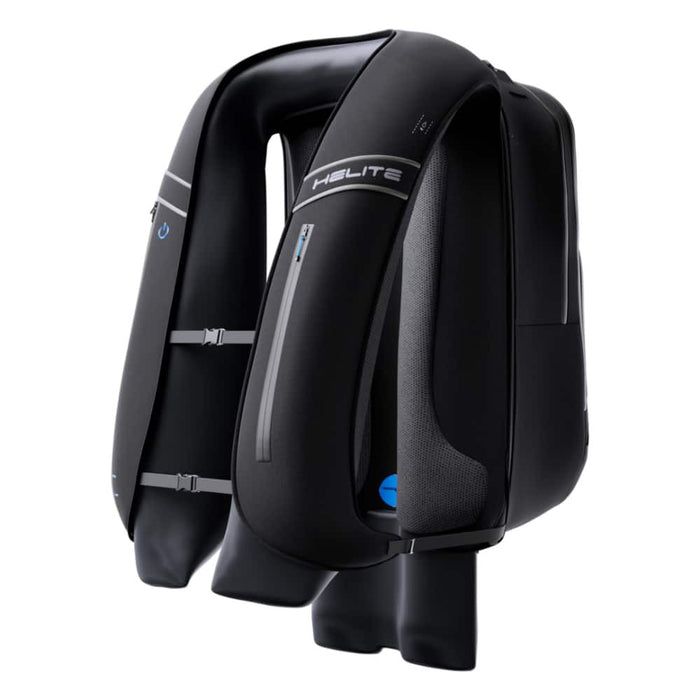

Airbag
It integrates the CDU electronic card, the e-cartridge, the triggering system, and the SAS-TEC Level 1 back protector. It also has space to hold a water bag. The airbag is removable and can be separated from the backpack via a zipper.

CDU Electronic Card
It analyzes the situation in real time (position of the rider in space, movement, speed, etc.) and detects accidents or falls. It incorporates a non-removable lithium-ion cylindrical battery (3.70 V, 2600 mAh). It has two cables: one to recharge the battery and one to connect the e-cartridge (locking connector). The CDU electronic card must be used exclusively inside the backpack airbag. Do not remove it or use it outside, alone, or in another textile.

E-Cartridge with Pyrotechnic Triggering System
It consists of pressurized CO₂ gas, a pyrotechnic triggering system, and a locking connector. The backpack airbag comes with a new cartridge already installed and ready to use. If a fall or accident is detected, the system pierces the cartridge cover and releases gas to inflate the airbag. The cartridge can be replaced easily by the user, and it is recommended to always have a spare.

SAS-TEC LB-XL Back Protector Level 1
Integrated into the backpack airbag, it provides improved protection using TURTLE Technology. Do not use the backpack airbag if the back protector has been removed.

USB Cable
Used to recharge the CDU electronic card battery.

Note: only the USB cable is supplied—you will need to connect it to a standard USB charger (5 VDC).
